AGUSTIN machine roomless passenger elevator can provide different loads and sizes to meet the various needs of customers with a good price.
For architects, machine room-less elevators are easy to integrate into the design and help optimize the available building space. For building owners, they help reduce total life cycle costs by providing excellent maintainability and reducing energy consumption.
The spacious cabin allows passengers and their luggage or employees and their equipment to pass through the building comfortably and efficiently.

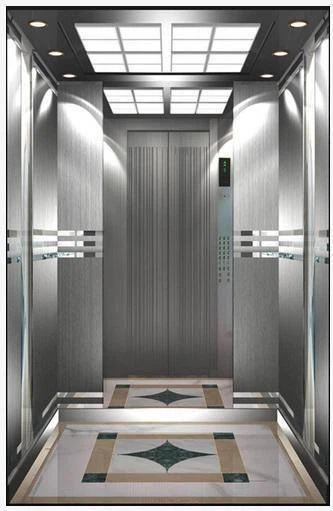

Cabin Decoration:
Stainless steel with mirror etching plus Handrail plus PVC floor
Elevator Details:
Traction machine: Gearless
Drive: VVVF
Drive type: AC
Capacity: 450, 630,800, 1000, 1150,1350, 1600...
Speed: 1.0, 1.5, 1.75, 2.0, 2.5...
Machine Roomless Passenger Elevator Techincal Specification
| Load(kg) | Speed(m/s) | Max. Travel(m) | Cabin Size(mm) CWCDCH | OP(mm) 2P CO | Shaft Size(mm) HWHD | Pit(mm) | Overhead(mm) | Motor Power(kw) |
| 630 | 1.0 | 60 | 140011002500 | 8002100 | 18501750 | 1400 | 4200 | 4.3 |
| 1.5/1.75 | 72 | 1500 | 4400 | 7.5 | ||||
| 800 | 1.0 | 60 | 140013502500 | 9002100 | 19602000 | 1400 | 4200 | 5.4 |
| 1.5/1.75 | 72 | 1500 | 4400 | 9.4 | ||||
| 2.0 | 120 | 1750 | 4750 | 10.8 | ||||
| 2.5 | 130 | 1900 | 4950 | 13.5 | ||||
| 1000 | 1.0 | 60 | 160014002500 | 9002100 | 20502050 | 1400 | 4200 | 6.7 |
| 1.5/1.75 | 72 | 1500 | 4400 | 11.7 | ||||
| 2.0 | 120 | 1750 | 4750 | 13.4 | ||||
| 2.5 | 130 | 1900 | 4950 | 16.8 |
