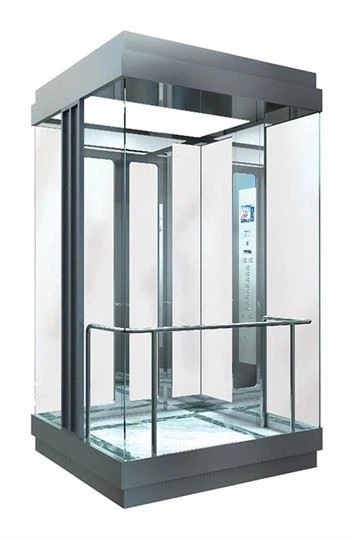

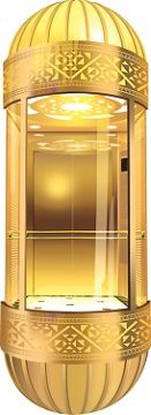

Glass observation elevator can be widely used in different commercial buildings and high-rise residential buildings. Passengers can see the scenery outside the elevator in the elevator and enjoy the visual stimulation brought by modern facilities. The vision is wide and bright, the shape is unique and exquisite, bringing a unique architectural landscape, expanding the field of vision, expanding the narrow space, the observation elevator looks very beautiful, runs smoothly, and the drag operation stops accurately. It has the characteristics of energy saving, high efficiency and safety.
Cabin Design:
Ceiling: 304 Mirror stainless steel plus LED lights
Panoramic wall: Safe laminated glass
Front wall: 304 Hairline stainless steel plus glass
Car wall: 304 Hairline stainless steel plus glass
Handrail: Stainless steel round tube
Floor: PVC floor
Brand: Agustin
Feature:
1. Safe and reliable
AGURSIN observation elevator puts safety first, ensuring that every passenger arrives at their destination safely.
2. Space allocation
From the point of view of saving space, Augustine Sightseeing Elevator has carried out a new layout of the machine room, which has improved the space utilization rate.
3. High performance
AGUSTIN observatin elevators are equipped with a stability control system with a maximum load of 1600kg. The intelligent elevator dispatching system provides customers with the best solution.
Glass Observation Elevator Technical Specification:
Load (kg) | Speed (m/s) | Max Travel (m) | Cabin Size （mm） CWCDCH | OP (mm) 2P CO | Shaft Size(mm) HWHD | Pit S(mm) | Overhead K(mm) |
| 630 | 1.0 | 60 | 140011002500 | 8002100 | 18501750 | 1400 | 4200 |
| 1.5/1.75 | 72 | 1500 | 4400 | ||||
| 800 | 1.0 | 60 | 140013502500 | 9002100 | 19602000 | 1400 | 4200 |
| 1.5/1.75 | 72 | 1500 | 4400 | ||||
| 2.0 | 120 | 1750 | 4750 | ||||
| 1000 | 1.0 | 60 | 160014002500 | 9002100 | 20502050 | 1400 | 4200 |
| 1.5/1.75 | 72 | 1500 | 4400 | ||||
| 2.0 | 120 | 1750 | 4750 |
